The Robo-MicorMIG series.The economical gateway to robot welding.

The cost-efficient robot current source on the entrance level. Flexible use and full upgrade options.

The Robo-MicorMIG series serves as an affordable gateway to robot welding, offering a vast range of functions and features for robust performance in common automation applications.

The Robo-MicorMIG welds with low spatter in the short arc, spray arc, or the optional robust pulse arc alike. Its MicorBoost technology accesses the system’s full potential as the control technology adjusts and stabilises the arc quickly and powerfully, even at rapid speed changes and set arc length on the robot.

Find a partner now

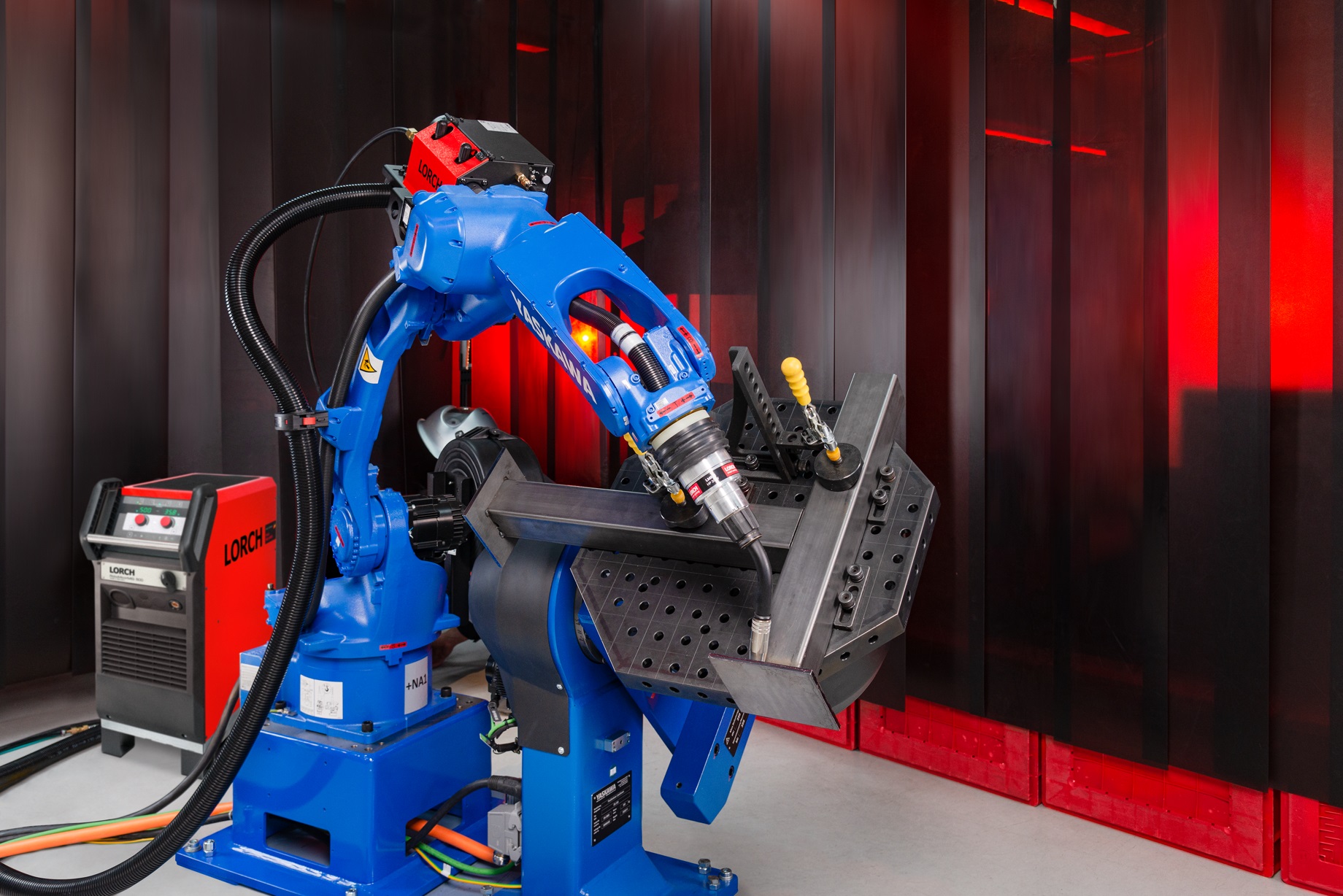

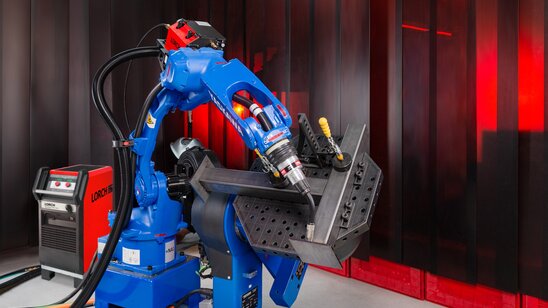

Welding systems of the Robo-MicorMIG series. Flexible use.
Welding systems of the Robo-MicorMIG series. Flexible use.

Robust performance in a vast application range.

Overview of the advantages of the Robo-MicorMIG series.

The Robo-MicorMIG is your perfect gateway to MIG-MAG-welding. It meets the highest quality standards in spite of its low cost, using a short arc subject to very precise control with thin-sheet work. The pulsed process avoids a transition arc entirely to ensure excellent results.

Robo-Micor MIG

Optimal integration.

Robo-MicorMIG can be integrated into different automation systems from any common robot manufacturer quickly and easily with its digital fieldbus protocols and two available analogue interfaces.

MicorBoost-technology for perfect welding results.

The innovative and patented Micorboost technology ensures maximum performance and top quality to enable perfect welding for any welder. The unit stands out with optimal welding properties in any work with metal sheets, medium, or heavy steel. The Robo-MicorMIG achieves outstanding welding results on steel, stainless steel, and aluminium with mixed gas and under CO2 alike.

Quality management made easier.

The NFC authorisation concept also permits precise access and authorisation control for higher quality in management and overview.

Future-proof with upgrade concept.

The system offers full upgrade capacities and allows addition of welding procedures, welding programmes as well as functions that make work easier at a later time with its NFC function. New options can be installed offline and without requiring any external support, allowing system expansion at any time to include precisely those functions that are required for the welding tasks at hand.

Performance plus thanks to Lorch's MicorBoost technology.

With MicorBoost technology, Lorch welding equipment can be made even lighter and more compact while ensuring increased power output.

Conventional welding inverters have relatively few voltage reserves. Whenever the arc becomes unstable during electrode welding, the conventional inverter has too little power to stabilize and the arc energy briefly collapses. This reduces the average arc power. MicorBoost technology provides huge voltage reserves. The collapse is avoided or decisively shortened and the arc power increases.

This enables a new quality in welding: Extremely stable and controllable - even with a long drawn arc.

Learn more about MicorBoost
11
Interface options
100%
Ready for digitaliZation
>150
Welding programs
7
Authorisation levels by NFC technology

BUS coupling system for all common protocols in robot welding.

The LorchNet connector of the Robo-MicorMIG series optimises connection of the power source to the robot controller. It serves as an interpreter, translating all signals and information from the internal LorchNet bus system into the robot’s language from one of the common FieldBus or Industrial Ethernet protocols.

All signals relevant for torch control, such as blow-out function, collision protection, and the contact sensor can also be communicated via the bus system entirely. An analogue-digital interface INT-06 for control cabinet installation or power source internal with 42-pin Harting connector is available as an option.

The control panel to match any needs.

The MicorMIG operation concepts stand out with their intuitive handling. All control panels offer multiple-stage dynamic control for setting the preferred arc characteristics and end crater filling to ensure optimal weld quality.

On top of this, a convenient welding programme selection via programme numbers and full upgrade capability are included.

01

BasicPlus

  • “3 steps and weld” operating concept
  • Stepless current adjustment
  • Digital Volt-Amperage-display
  • Automatic settings (synergy function)
  • Simple process and welding programme selection
  • 7-step dynamic arc control (via the control panel), steplessly via the robot interface
02

ControlPro

  • “3 steps and weld” operating concept
  • Stepless current adjustment
  • Digital Volt-Amperage-display
  • Automatic settings (synergy function)
  • Simple process wend welding programme selection
  • 21-step dynamic arc control (via the control panel), steplessly via the robot interface
  • OLED graphic display - for displaying the 3rd main parameter
  • Tiptronic job memory for 100 welding tasks
  • Available as a remote version: individual selection of the operating option. In the power source, as a remote control control panel or both on demand

3 steps and welding:

Best operation. Best welding result.

Lorch systems are so easy to operate because we integrated many of the things you have had to adjust since as assistance systems during development. A maximum of 3 steps and you weld perfection. The rest runs in the background. A very good system serves you, not you it. Operate - without you having to deal with it.

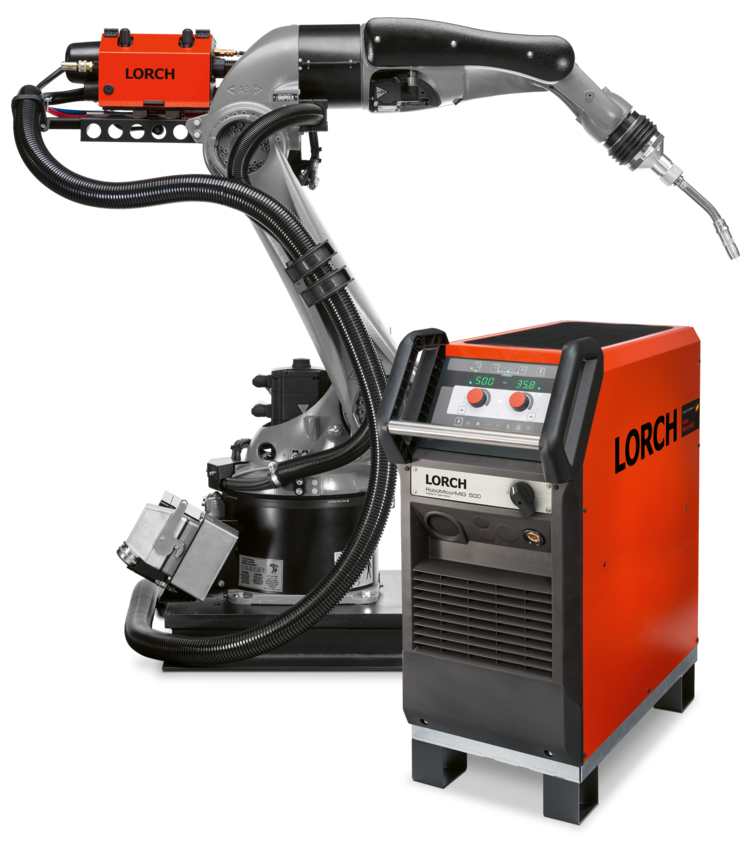

The Lorch RF-06 robot wire feeder.

Lorch’s RF-06 Robot wire feeder is compact, light-weight, and precise, making it the perfect wire feeder for standard and hollow-arm robots alike.

Learn more

Digitise, analyse, and reliably optimise your welding processes.

Lorch Connect: The optional add-on for your Robo-Micor-MIG-welding unit.

Collecting data has an enormous potential of providing additional information on the key factors in the value chain that ultimately determine the quality, productivity, and profitability of your welding processes. As a result, Lorch has developed a simple yet cost-effective cloud solution that provides the necessary transparency and supports you in digitally mastering your daily welding tasks.

Lorch Connect records your welding production data to let you analyse your processes and optimise them in a targeted manner. Add the optional Lorch Connect to Robo-MicorMIG welding system for a digital overview.

Learn more about Lorch Connect

The diversity of the MicorStick series.

ROBOTICS

Robo-MicorMIG 300

  • Operation concept: BasicPlus, ControlPro
  • 25 - 300 A
  • ED 60% at 40°C: 250 A
  • Weldable wires steel: 0.6 – 1.2 mm Ø
Read more
ROBOTICS

Robo-MicorMIG 350

  • Operation concept: BasicPlus, ControlPro
  • 25 - 350 A
  • ED 60% at 40°C: 300 A
  • Weldable wires steel: 0.6 – 1.2 mm Ø
Read more
ROBOTICS

Robo-MicorMIG 400

  • Operation concept: BasicPlus, ControlPro
  • 30 - 400 A
  • ED 60% at 40°C: 370 A
  • Weldable wires steel: 0.6 – 1.6 mm Ø
Read more
ROBOTICS

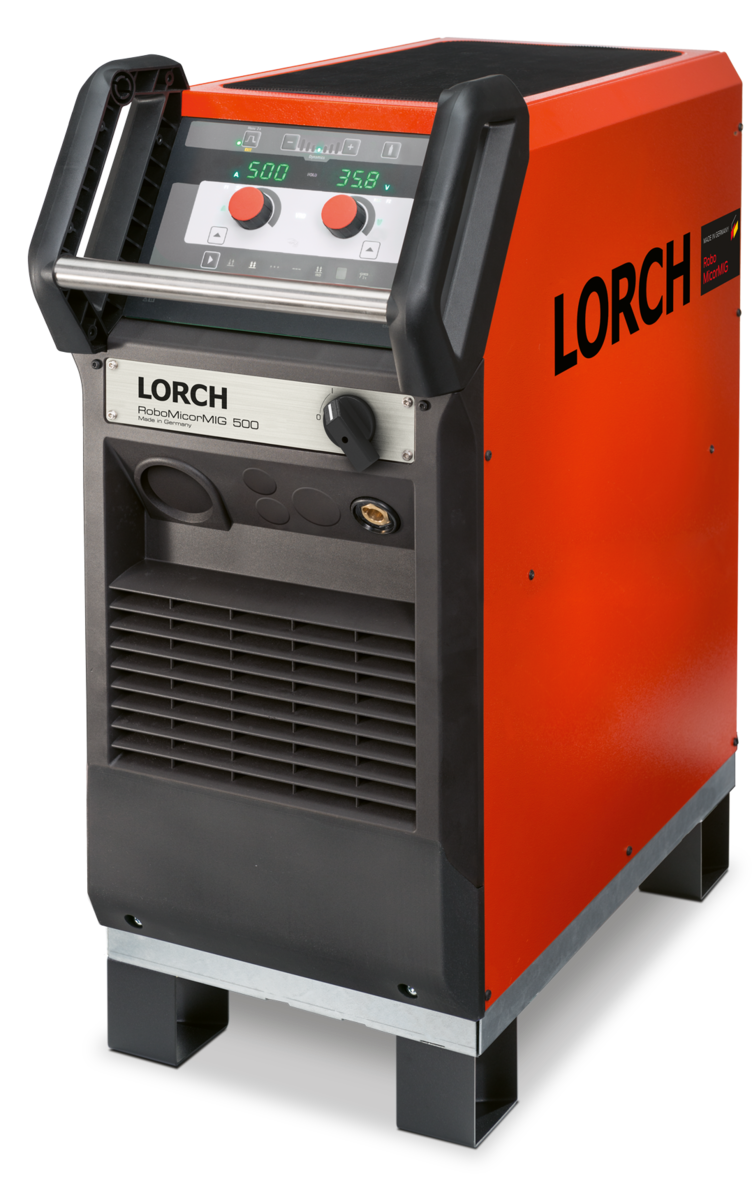

Robo-MicorMIG 500

  • Operation concept: BasicPlus, ControlPro
  • 30 - 500 A
  • ED 60% at 40°C: 430 A
  • Weldable wires steel: 0.6 – 1.6 mm Ø
Read more

Q-Sys 2020: Highest quality thanks to precise welding data monitoring.

The compatible Q-Sys 2020 stand-alone solution fully monitors and evaluates weld seam quality entirely as a welding process monitor. This provides fast and accurate welding data recording, controls welding parameters, and identifies defective weld seams. This warrants error-free production.

Learn more about Lorch Connect

Always well-advised with close, personal, and honest support.

Are you interested in Robo-MicorMIG series by Lorch but not quite certain of which model to choose yet? Do you have any other questions? The Lorch partner search will quickly get you into contact with a competent contact near you for personal advice.

Find a partner now

Downloads.

Do you want to learn more about the Robo-MicorMIG series by Lorch? Technical data as well as details on application and equipment can be found here:
