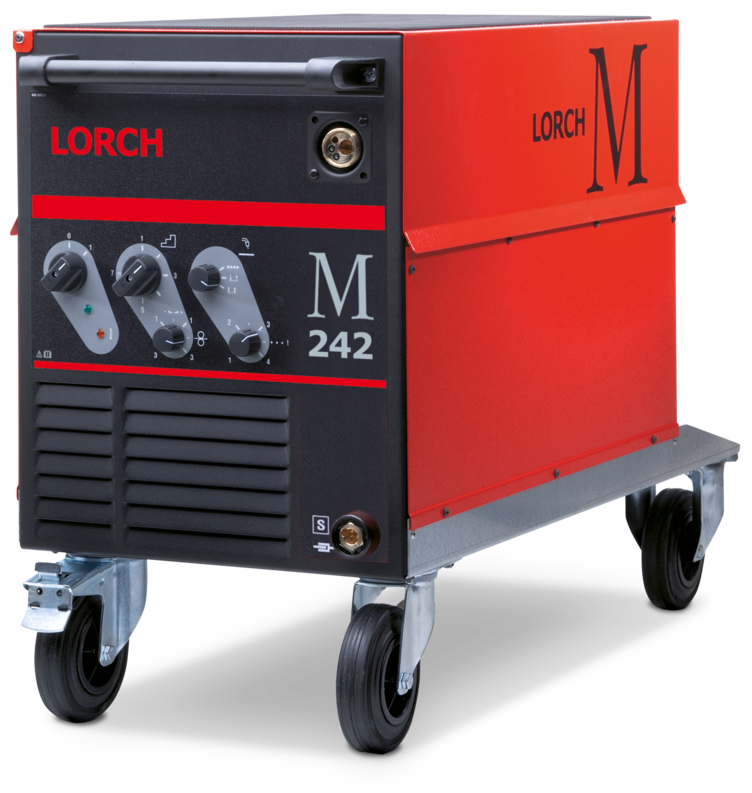

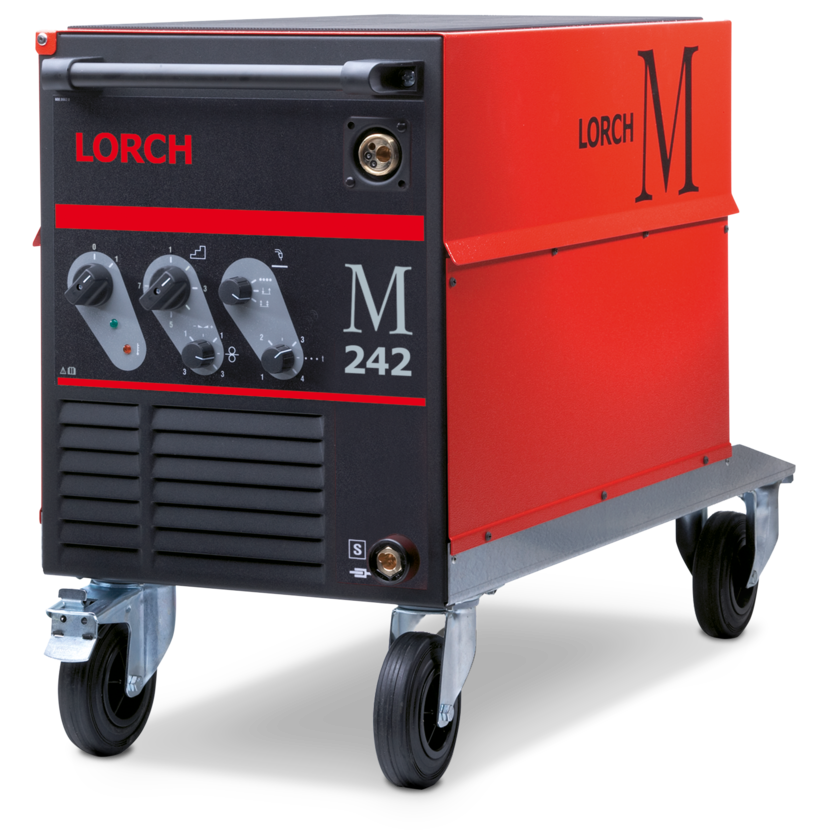

M 242
The MIG-MAG classic raised to perfection.
- 7 voltage levels
- 30 - 230 A
- ED 60% at 40°C: 155 A
- Material thicknesses: Steel and aluminium up to 10 mm
Technical data
| MIG-MAG welding | |
|---|---|
| Welding range 1~ 400 V: [A] | 30 - 230 |
| Voltage range: [V] | 15.5 - 25.5 |
| Weldable Wires Steel: [Ø in mm] | 0.6 - 1 |
| Weldable wires aluminum: [Ø in mm] | 1 - 1.2 |
| Voltage setting | |
|---|---|
| Voltage setting: | 7 passi |
| MIG-MAG duty cycle | |
|---|---|
| Duty cycle 100% (40°c): [A] | 115 |
| Duty cycle 60% (40°c): [A] | 155 |
| Duty cycle at max. current (40°c): [%] | 20 |
| Process-independent data | |
|---|---|
| Open circuit voltage: [V] | 17 - 34 |
| Feed speed standard: [m/min] | 1 - 23 |
| Mains | 400 V |
|---|---|
| Mains voltage 3~ (50/60 Hz): [V] | 400 |
| Mains fuse 3~ (50/60 Hz): [A] | 16 |
| Positive mains tolerance 3~ (50/60 Hz): [%] | 15 |
| Negative mains tolerance 3~ (50/60 Hz): [%] | 15 |
| Mains plug | |
|---|---|
| Mains plug: | CEE 16 |
| Standards and approvals | |
|---|---|
| Protection class: | IP23S |
| Insulation class: | F |
| Norm/Standard: | EN 60974-01 |
| Designation/Certification: | CE, S |
| Cooling type | |
|---|---|
| Cooling type: | Gas-cooled |
| Dimensions | length x width x height |
|---|---|
| Dimensions (LxWxH) [mm] | 870 × 390 × 610 |
| Weights | |
|---|---|
| Weight: [kg] | 57 |
