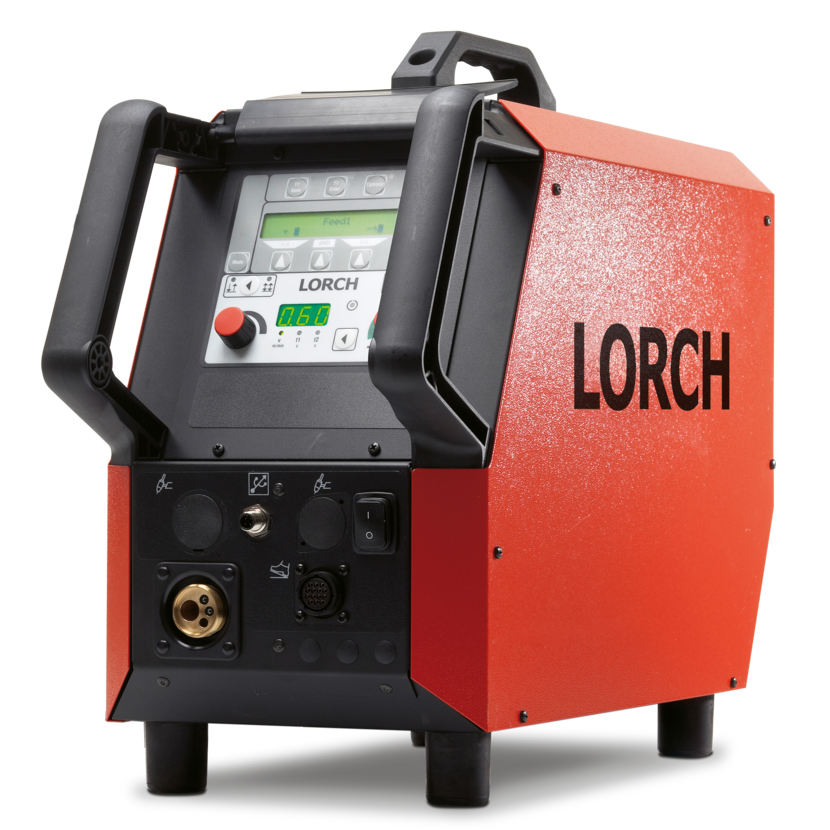

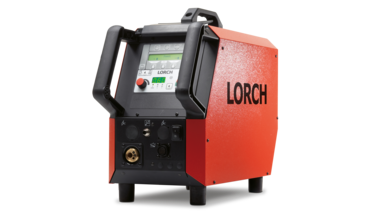

Feed 1
Automatic wire feed for your TIG welding unit.
  • Alternatively 0.1 – 6.0 or 0.5 - 20.0 m/min feed speed
  • 4 rolls/tachometer-controlled motor/digital speed control
  • Mains supply: 1~ 230 V
  • Standard design
FEED 1

4-roller precision wire feed.

The 4-roller precision wire feed with tacho-controlled feed motor ensures precise wire feeding.

Digital speed control.

Ensures precise and reliable cold wire feeding while welding.

Plain text display with language selection and Tiptronic.

A clearly structured user interface and the inclined control panel keep the device controls easy to see and operate at all times. In Tiptronic mode, you can also save the ideal setting for each weld seam.

Direct connection to the power source.

Simply connect the Lorch Feed to your TIG welding unit using the LorchNet cable. This will exchange all relevant information and allow integrated control between your TIG welding unit and the automatic wire feed.

Country-specific product variants.

Country-specific product variants are available for this Lorch welding unit. These may differ in the mains supply, the mains plug or other product features required for the country. You want to know more? Contact your local Lorch partner.

Technical data

TIG Duty cycle AC 230 V
Pulse frequency AC: [kHz] 5
TIG Duty cycle DC 230 V
Pulse frequency DC: [kHz] 5
Process-independent data
Feed speed standard: [m/min] 0.1 - 6
Feed speed precision: [m/min] 0.5 - 20
Spool weight: [kg] 18 - 18
Mains 230 V
Mains voltage 1~ (50/60 Hz): [V] 230
Mains fuse 1~ (50/60 Hz): [A] 16
Positive mains tolerance 1~ (50/60 Hz): [%] 10
Negative mains tolerance 1~ (50/60 Hz): [%] 10
Mains plug
Mains plug: Schuko
Standards and approvals
Protection class: IP23S
Norm/Standard: EN 60974-01
Designation/Certification: CE, S
Dimensions length x width x height
Dimensions (LxWxH) [mm] 670 × 270 × 500
Weights
Weight: [kg] 21.5
