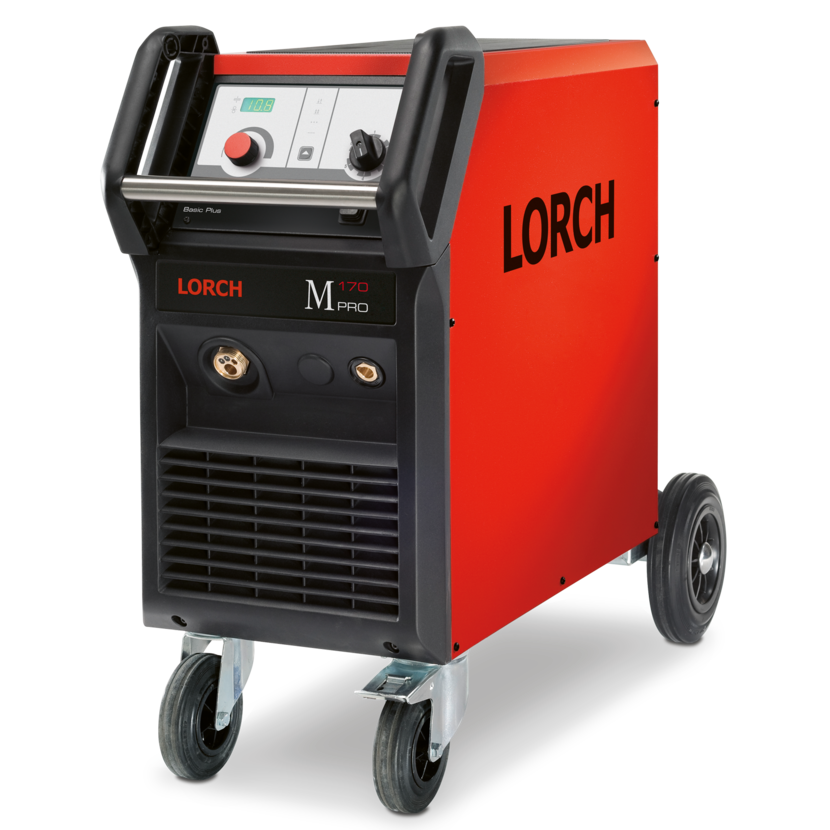

M-Pro 170

M-Pro 170

Smart MIG-MAG-welding. Customised.

Operation concepts: BasicPlus
25 - 170 A
ED 60% at 40°C: 85 A
Material thicknesses: Steel, stainless steel, and aluminium up to 6 mm

Go to distributor search

M-PRO 170

Efficiency increase.

The automatic synergy setting produces perfect weld seams quickly, easily, and reliably, without any teach-in or transmission errors. This saves time and money while also ensuring consistently high quality of the welding work.

Maximal work safety.

M-Pro 170 products effectively protect your welding professionals while ensuring highest safety at work with their three special features:
1. Angled torch connection
2. Double gas cylinder safety device
3. Rolling lock total stop roller

Robust housing.

The M-Pro housing is extremely robust and mobile thanks to its sturdy handles. This makes it ideal for use in a workshop. The top of the case also makes for a perfect storage surface.

Interior lighting.

Interior lighting improves visibility for wire threading in the easily accessible wire feed compartment of the M-Pro 170. This allows the welder to work well at all times, no matter how bright or dark their environment is.

Technical data

MIG-MAG welding
Welding range 1~ 230 V: [A]	25 - 170
Welding range 2~ 400 V: [A]	25 - 170
Voltage range: [V]	15.3 - 22.5
Weldable Wires Steel: [Ø in mm]	0.6 - 0.8
Weldable wires Stainless steel: [Ø in mm]	0.8 - 0.8
Weldable wires aluminum: [Ø in mm]	1 - 1

Voltage setting
Voltage setting:	6 passi

MIG-MAG duty cycle
Duty cycle 100% (40°c): [A]	70
Duty cycle 60% (40°c): [A]	85
Duty cycle at max. current (40°c): [%]	15

Process-independent data
Open circuit voltage: [V]	14 - 40

Mains	230 V	400 V
Mains voltage 1~ (50/60 Hz): [V]	230
Mains fuse 1~ (50/60 Hz): [A]	16
Positive mains tolerance 1~ (50/60 Hz): [%]	15
Negative mains tolerance 1~ (50/60 Hz): [%]	15
Mains voltage 2~ (50/60 Hz): [V]		400
Mains fuse 2~ (50/60 Hz): [A]		16
Positive mains tolerance 2~ (50/60 Hz): [%]		15
Negative mains tolerance 2~ (50/60 Hz): [%]		15

Mains plug
Mains plug:	Schuko / CEE 16

Standards and approvals
Protection class:	IP23S
Insulation class:	F
Norm/Standard:	EN 60974-01
Designation/Certification:	CE, S

Cooling type
Cooling type:	Gas-cooled

Dimensions	length x width x height
Dimensions (LxWxH) [mm]	880 × 400 × 755

Weights
Weight: [kg]	65

BasicPlus

“3 steps and weld” operating concept
Current settings in 6-12 steps
Automatic settings (synergy function)

Other products of the series

MIG-MAG

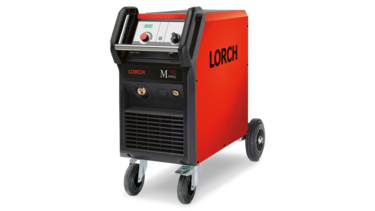

M-Pro 150 CuSi

Operation concepts: BasicPlus, ControlPro
15 - 150 A
ED 60% at 40°C: 120 A
Optimised welding programmes for the MIG-solder process

MIG-MAG

M-Pro 200 CuSi

Operation concepts: ControlPro, Performance
15 - 200 A
ED 60% at 40°C: 130 A
Optimised welding programmes for the MIG-solder process

MIG-MAG

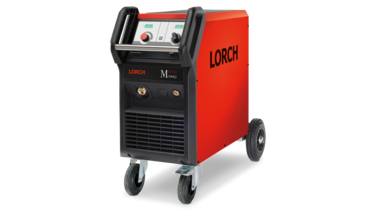

M-Pro 210

Operation concepts: BasicPlus, ControlPro
25 - 210 A
ED 60% at 40°C: 90 A
Material thicknesses: Steel, stainless steel, and aluminium up to 8 mm

MIG-MAG

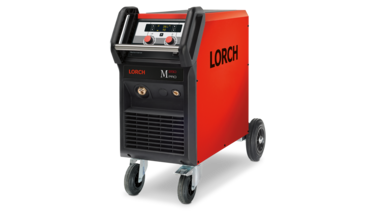

M-Pro 250

Operation concepts: BasicPlus, ControlPro, Performance
30 - 250 A
ED 60% at 40°C: 185 A
Material thicknesses: Steel, stainless steel, and aluminium up to 10 mm

MIG-MAG

M-Pro 300

Operation concepts: BasicPlus, ControlPro, Performance
30 - 300 A
ED 60% at 40°C: 205 A
Material thicknesses: Steel, stainless steel, and aluminium up to 18 mm
