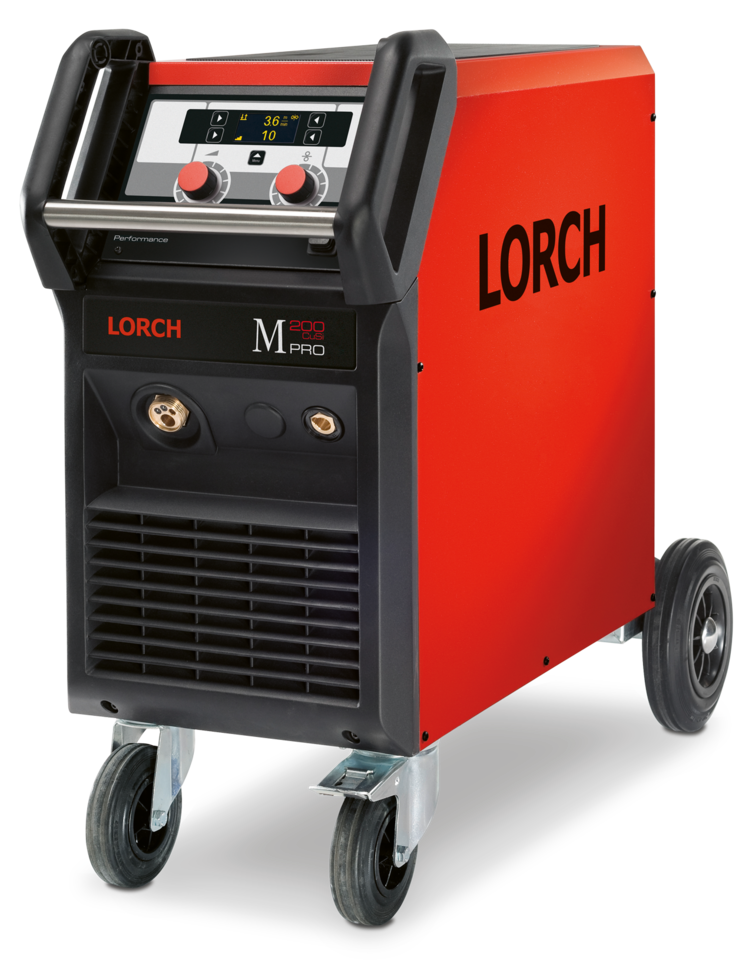

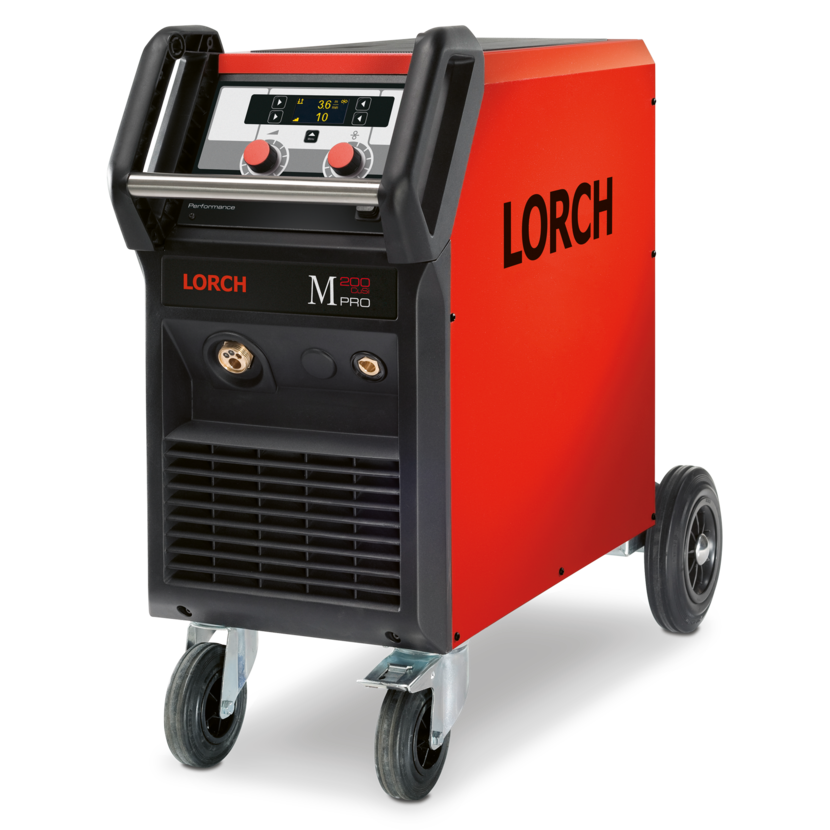

M-Pro 200 CuSi

M-Pro 200 CuSi

Smart MIG-MAG-welding. Customised.

Operation concepts: ControlPro, Performance
15 - 200 A
ED 60% at 40°C: 130 A
Optimised welding programmes for the MIG-solder process

Go to distributor search

M-PRO 200 CUSI

Efficiency increase.

The automatic synergy setting produces perfect weld seams quickly, easily, and reliably, without any teach-in or transmission errors. This saves time and money while also ensuring consistently high quality of the welding work.

Maximal work safety.

M-Pro 200 CuSi products effectively protect your welding professionals while ensuring highest safety at work with their three special features:
1. Angled torch connection
2. Double gas cylinder safety device
3. Rolling lock total stop roller

Robust housing.

The M-Pro housing is extremely robust and mobile thanks to its sturdy handles. This makes it ideal for use in a workshop. The top of the case also makes for a perfect storage surface.

Interior lighting.

Interior lighting improves visibility for wire threading in the easily accessible wire feed compartment of the M-Pro 200 CuSi. This allows the welder to work well at all times, no matter how bright or dark their environment is.

Technical data

MIG-MAG welding
Welding range 3~ 400 V: [A]	15 - 200
Voltage range: [V]	14.8 - 24
Weldable Wires Steel: [Ø in mm]	0.6 - 1
Weldable wires Stainless steel: [Ø in mm]	0.8 - 1
Weldable wires aluminum: [Ø in mm]	0.8 - 1.2
Weldable wires CuSi: [Ø in mm]	0.8 - 1

Voltage setting
Voltage setting:	12/21 passi

MIG-MAG duty cycle
Duty cycle 100% (40°c): [A]	100
Duty cycle 60% (40°c): [A]	130
Duty cycle at max. current (40°c): [%]	20

Process-independent data
Open circuit voltage: [V]	13 - 37

Mains	400 V
Mains voltage 3~ (50/60 Hz): [V]	400
Mains fuse 3~ (50/60 Hz): [A]	16
Positive mains tolerance 3~ (50/60 Hz): [%]	15
Negative mains tolerance 3~ (50/60 Hz): [%]	15

Mains plug
Mains plug:	CEE 16

Standards and approvals
Protection class:	IP23S
Insulation class:	F
Norm/Standard:	EN 60974-01
Designation/Certification:	CE, S

Cooling type
Cooling type:	Gas-cooled

Dimensions	length x width x height
Dimensions (LxWxH) [mm]	880 × 400 × 755

Weights
Weight: [kg]	68

ControlPro

“3 steps and weld” operating concept
Current settings in 7-12 steps
Automatic settings (synergy function)

Digital Volt-Amperage-display

Performance

“3 steps and weld” operating concept
Current setting in 21 precisely adjustable steps
Automatic settings (synergy function)

OLED graphic display
Tiptronic-job memory for 10 welding tasks
